Product Code : EDS-E-12758
Eduscope India is a leading Precision Current Balance
Description :
The current balance with weights is an instrument to which Laplace’s law applies. According to this law, a current-carrying conductor perpendicular to a magnetic field receives force.

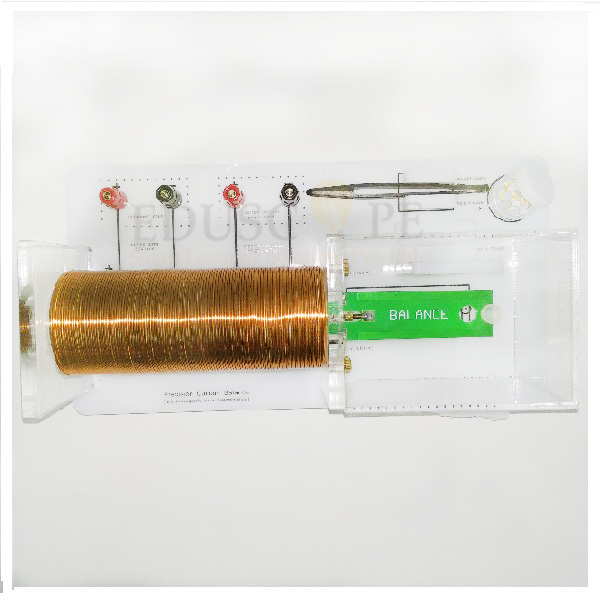

The device includes a solenoid coil and a current balance.
The balance consists of a rectangular piece of epoxy board on which a conductor is printed.
Two metal conductors are located in the middle of the board.
These conductors act as support axes for the current balance when it is balanced under the influence of its weight.
Through these conductors current is passed to the conductor of the current balance.
The balance board rests on two power supply contacts that are tangential to one end of the coil.
Half of the current balance which includes the conductive printed path is located inside the coil and the other half which does not include a conductive path is located outside the coil.
The current balance when not powered can be adjusted with the precision counter weights in its center so that it is balanced.
Specifications :
Base : 310x160x10mm
Hollow Solenoid : Inner diameter is 41mm, lenth is 160mm,
Roll with 600 circles thick enameled wire, dia is 1.2mm
Windsheild : clear , 120mmx90mmx90mm, 1pc
circle titlle wieghts : Print the mark of weights, Each is 7mg, 20pcs/box
