Single Stage Air Compressor Test Rig

Product Code : EDS-ETE-15583
Eduscope India is a leading Single Stage Air Compressor Test Rig

Description:

Single Stage Air Compressor Test Rig consists of a single stage reciprocating type air compressor driven by 1 HP motor through a belt.

The outlet of the air compressor is connected to reservoir (Tank) and suction is connected to another air tank with an orifice plate and a water manometer.

Specifications:

• Compressor : single stage, capacity 4 CFM (max.)

• Working pressure 5kg/cm2 max.

• Drive :1 hp Crompton make motor

• Manifold Tank : suitable capacity Flow Measurement: orifice meter with manometer Temp.

• Measurement: RTD PT-100 type sensor (2nos.)

• RPM measurement: RPM Indicator with proximity sensor.

• Air Tank: capacity 90 ltrs .with safety valve shut off valve.

• Pressure Gauge: bourdon type Control Panel

• Comprises of: Energy measurement: Electronic Energy meter, L&T make.

• MCB: For overload protection.

• Standard make On/Off Switch, Mains Indicator, etc.

Related Products

Recycle Bed Reactor

Engine ECU System Programming Training Platform

High Voltage Battery Training Stand

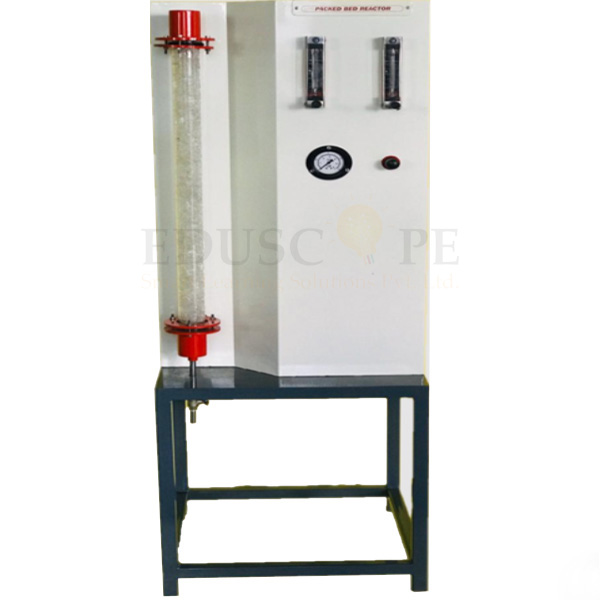

Packed Bed Reactor

Single Cylinder Four Stroke Petrol Engine, Recoil Start

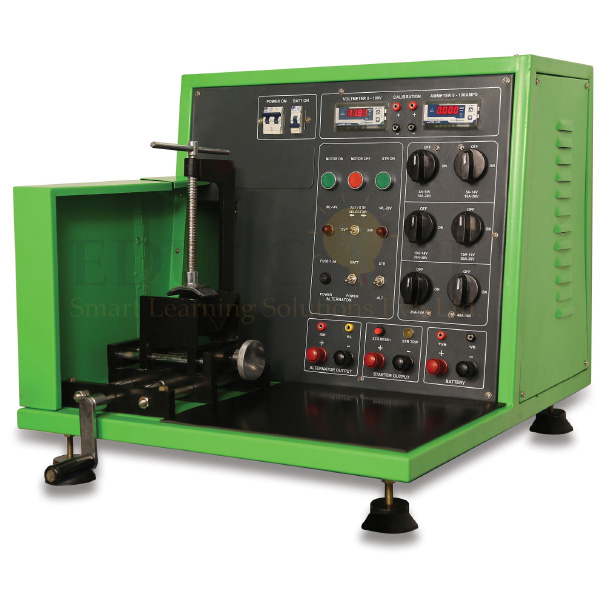

Alternators/Starter Motors Test Bench

Three Phase Half Wave Rectifier with Power Supply

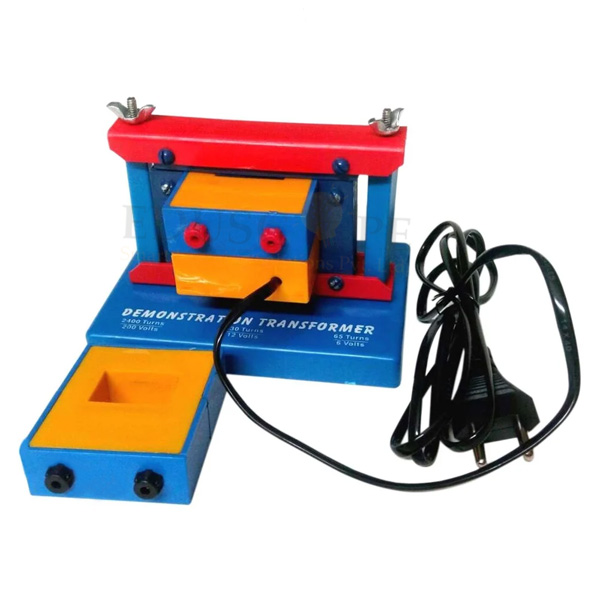

Demonstration Transformer
