Geometrical Optics
Product Code : EL-LE-13304

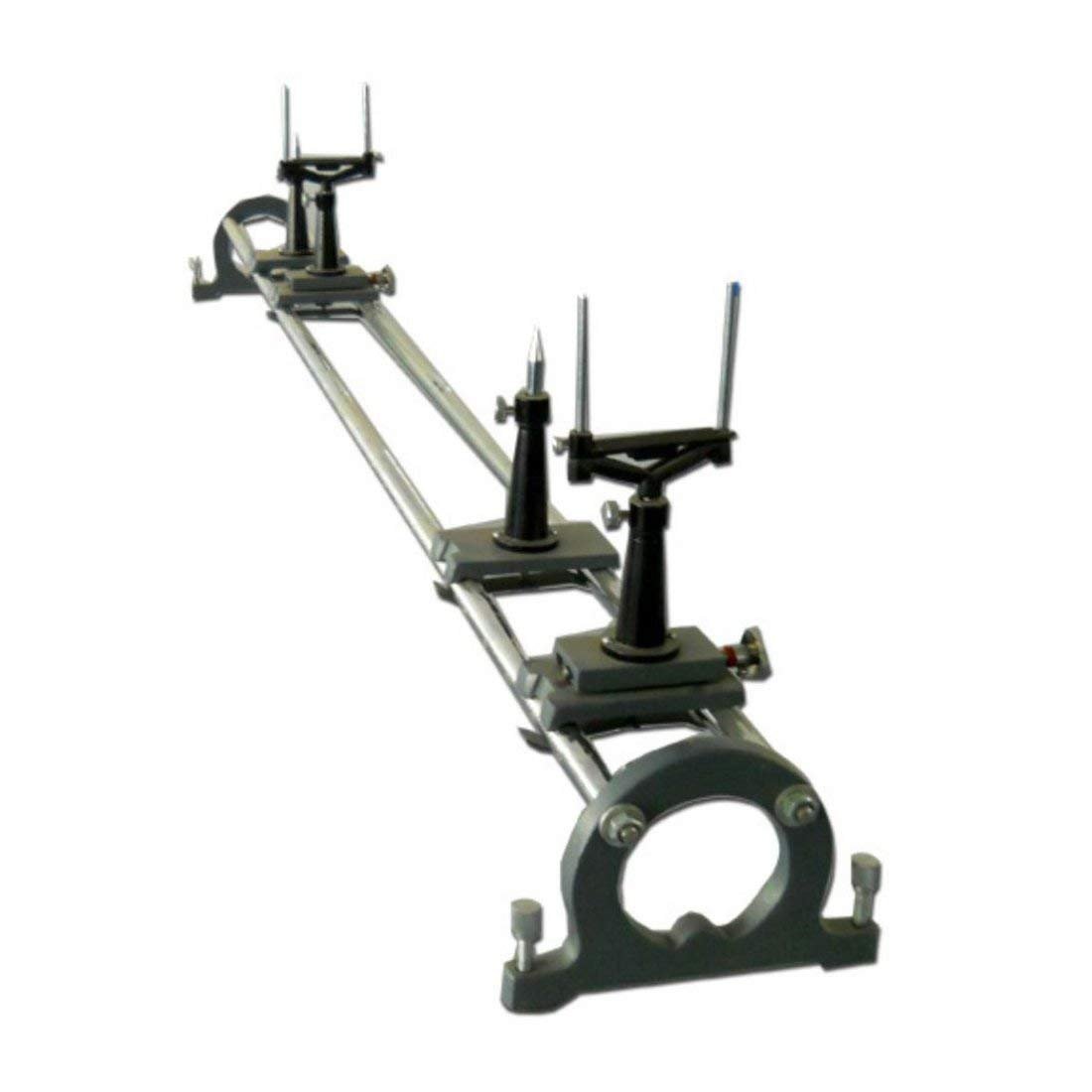

Eduscope India is a leading Geometrical Optics
Quick Answer: The Geometrical Optics set is an 18-piece light optics experiment bench used to carry out precise optical experiments, measurements and demonstrations.
Technical Specifications
| Specification | Value |
|---|---|
| Pieces | 18 pieces |
| Base | polypropylene base measuring 125mm in length and 160mm in height |
| Rail | graduated square-section aluminium rod 110cm long (graduated up to 100cm) |
| Holders | ABS sliding holders with adjustable knobs |
| Light source supply | 220V AC |
| Lamp lifespan | 30,000 hours |
| CRI | at least 80 |
| Lenses | concave lens and a convex lens, each with a 50mm diameter and 20cm focal length |
| Plane mirror | 100mm x 75mm |
| Optical pins | 100mm in length |
As core optics lab equipment India physics departments rely on, this experiment bench is part of EduScope India's range of laboratory equipment and is built around a graduated optical rail for repeatable, accurate optics teaching.
Specifications
The set comprises 18 pieces built around a polypropylene base measuring 125mm in length and 160mm in height, with a graduated square-section aluminium rod 110cm long (graduated up to 100cm) carrying ABS sliding holders with adjustable knobs for precise positioning. The electrical light source runs on 220V AC with a power consumption of 10W/m, a rated lifespan of 30,000 hours and a CRI of at least 80. Optical components include a concave lens and a convex lens, each with a 50mm diameter and 20cm focal length, a plane mirror measuring 100mm x 75mm, and optical pins 100mm in length.
EduScope India also supplies related optics bench India school equipment, including the Polarization Viewer and the Curved Mirror With Bracket, both used for complementary light-path demonstrations.
Request a Quote
To know current pricing, bulk school order terms and export documentation for the Geometrical Optics set, please contact us.
